Illuminating Luxury: The Definitive Guide to DALI Magnetic Track Lighting for Modern Hotel Projects

In the world of high-end hospitality, lighting is no longer just a utility—it is a core element of the guest experience. Today’s luxury hotels face a dual challenge: creating a "wow" factor that adapts from day to night, while drastically cutting operational energy costs.

Enter the DALI Magnetic Track Lighting System. By combining the mechanical flexibility of 48V magnetic track with the digital precision of the DALI-2 protocol (specifically DT8), architects and designers can now achieve a level of scene control and adaptability previously impossible with traditional downlights .

This paper explores why the DALI Magnetic Track System is the superior choice for hotel projects, breaking down the technology, the benefits, and the visual impact through specific application zones.

Part 1: Technical Deep Dive – Why DALI + Magnetic Track?

To understand the impact, we must first look under the hood. Most hotel lighting projects suffer from either rigid layouts (fixed downlights) or basic dimming (0-10V) that fails to create dynamic scenes.

1.1 The 48V Magnetic Platform

Unlike line-voltage systems (120V-277V), the 48V DC magnetic track is inherently safe and modular. It allows for tool-free installation and repositioning. For a hotel, this means maintenance teams can adjust spotlighting for new art installations or seasonal furniture rearrangements without an electrician.

1.2 DALI DT8: The Game Changer

The real innovation lies in DALI DT8 (Device Type 8). While standard DALI controls intensity, DT8 controls Color Temperature (CCT) .

• Before: You bought a 3000K spotlight. It stayed 3000K forever.

• After: A single DALI DT8 track head can shift from 2700K (warm, cozy evening) to 6500K (cool, alert morning) .

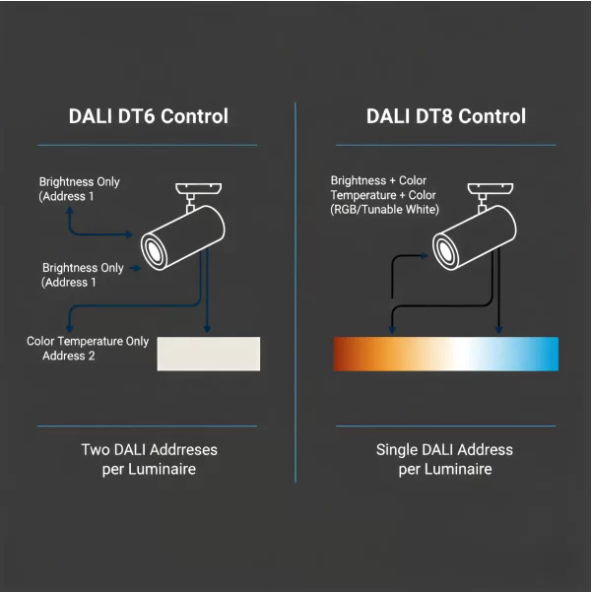

Illustration 1: The DALI DT8 spectrum allows a single magnetic track head to transition from Warm Amber (left) to Cool White (right), mimicking natural sunlight. Below clear explain for DT8 different from DT6:

Part 2: The Hotel Case Study – Zoning with Magnetic Track

A hotel is a multi-functional ecosystem. The DALI magnetic track system excels because it allows one continuous track to service different zones with different fixtures, all controlled by one central panel.

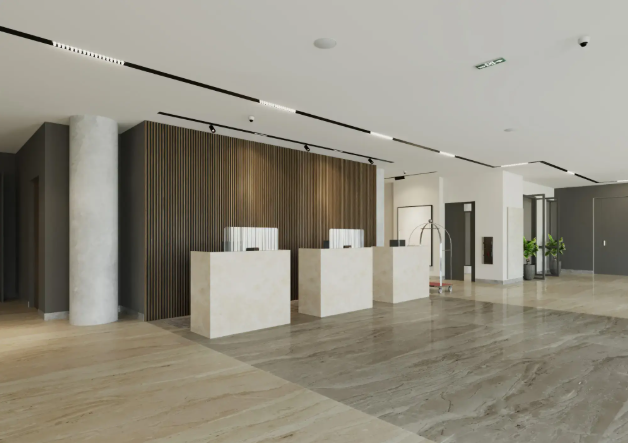

Zone 1: The Lobby & Reception – "The Welcome Statement"

The Challenge: The lobby must look spectacular at midnight (moody, intimate) but bright and secure at 6 AM (functional, clean).
The Solution:

• Install recessed trimless magnetic track in a geometric pattern (e.g., a rectangle framing the reception desk or a custom curved path).

The DALI Scene:

• Morning Scene: Spotlights at 100% intensity, 4000K (cool) to energize staff and guests.

• Evening Scene: Spotlights at 40% intensity, 2700K (warm) to create a cozy, welcoming glow.

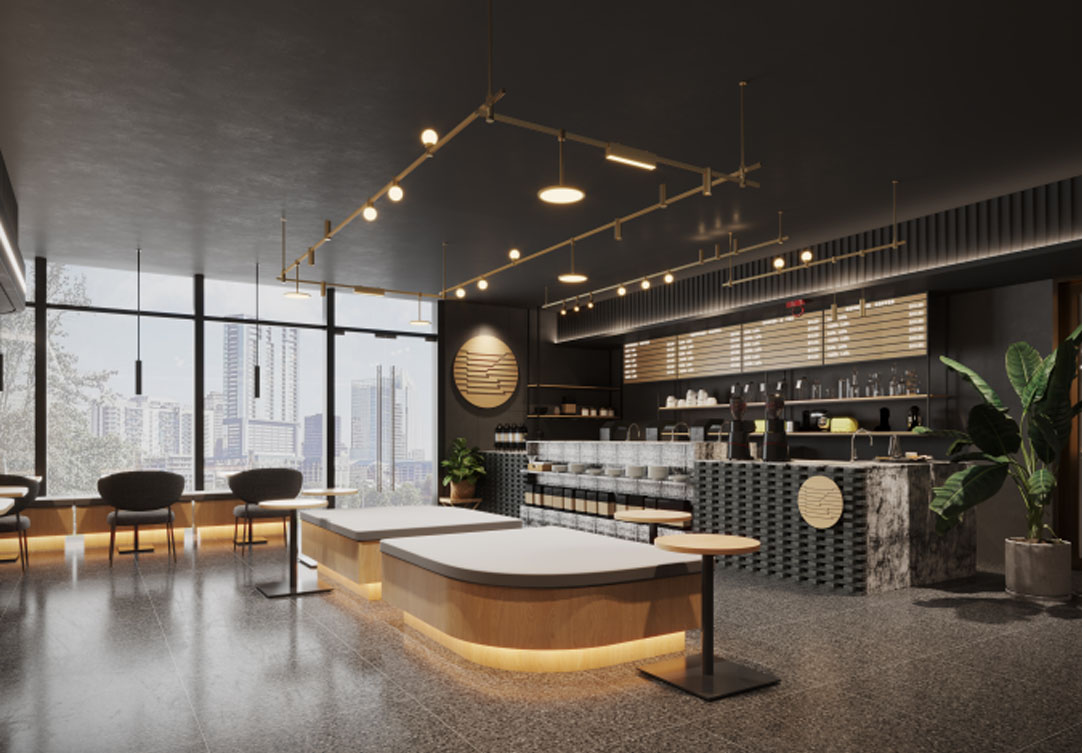

Zone 2: The Restaurant & Bar – "Ambiance Engineering"

The Challenge: A restaurant needs bright light for cleaning/setup, warm light for dining, and dynamic color effects for late-night bar service.
The Solution:

• Suspended magnetic track pendants over tables.

• Wall-washing magnetic heads on the perimeter track.

The DALI Scene:

• Pre-Service (5:00 PM): General lighting at 100% (3000K).

• Dinner Service (8:00 PM): Gradual dimming to 20% (2700K). Tracks over empty tables turn off to focus light on occupied zones.

• Bar Time (11:00 PM): Accent lights stay on at 10%; pathway lights dim to 5%.




Zone 3: Hotel Corridors – "The Silent Navigator"

The Challenge: Long corridors waste massive amounts of energy if kept fully lit.
The Solution:

• DALI sensors integrated into the magnetic track.







The DALI Scene:

• Standby: 10% intensity (2700K) – just enough for safety and security cameras.

• Occupied: Sensors trigger the track heads ahead of the guest to ramp to 70% (3000K), then dim back down once the guest passes.

Part 3: The Financial & Operational ROI (For Hotel Owners)

Switching to a DALI magnetic track system is not just an aesthetic choice; it is a financial one.

1. Energy Savings (30-40%)

A study of retrofitted hotels showed that combining DALI control with LED magnetic track reduces lighting energy consumption by up to 40% through daylight harvesting (dimming lights near windows) and vacancy detection.

2. Future-Proofing

The "Rekeying" Problem: Hotels renovate every 5-7 years. Hardwired downlights require ceiling patching and repainting if moved. Magnetic track allows fixture repositioning without construction dust or labor costs.

3. Maintenance Logic

With DALI's bi-directional communication, your maintenance tablet knows exactly which fixture is out.

• Old Way: "Guest in room 204 says light flickering." Engineer checks 3 different spots.

• DALI Way: System reports "Address #045 (Track 2, Position 4) has voltage drop." Engineer fixes it in 2 minutes.

Part 4: Image-Based Technical Analysis

To truly understand the installation value, we must look at the physical hardware. Below is an explanation of a typical 48V DALI magnetic track profile used in a recent 5-star hotel project in Southeast Asia.

Reference Image: 48V Magnetic Track Cross-Section

• A. The Aluminum Housing (The Track):

• Feature: Low profile (often 20mm-40mm height).

• Hotel Benefit: Allows for trimless recessed installation. The track disappears into the plasterboard, leaving only a sleek line. This suits minimalist, modern hotel aesthetics perfectly.

• B. The Magnetic Strip:

• Feature: High-strength neodymium magnets.

• Hotel Benefit: Allows staff to attach or remove spotlights without tools. If a VIP guest requests less glare above the bed, staff can slide the spot away instantly.

• C. The Copper Busbars (5-wire vs. 3-wire):

• Feature: Standard DALI magnetic track uses 5 wires: Live, Neutral, Ground, DALI (+), DALI (-).

• Hotel Benefit: This wiring setup allows for individual addressing. You can control Spot #1 and Spot #3 on the same track independently, without needing physical barriers.

• D. The Adapter (The Fixture Head):

• Feature: Rotating locking mechanism and spring-loaded pins.

• Hotel Benefit: Ensures a flicker-free connection. In high-end hotels, flicker is unacceptable for video and guest comfort. DALI digital signals eliminate the "hum" and flicker of analog dimmers.

Part 5: Conclusion & Future Outlook

The hospitality industry is moving toward Human Centric Lighting (HCL) – lighting that supports the circadian rhythms of guests. For a hotelier, a guest who feels "well" in their room is a returning guest.

The DALI Magnetic Track Lighting System is the only current hardware that offers:

1. The Flexibility of a modular, tool-free grid.

2. The Intelligence of DT8 tunable white and individual addressing.

3. The Efficiency of low-voltage 48V operation.

For your next hotel renovation or new build, spec the track, not the downlight. Your guests (and your energy bill) will thank you.

Call to Action:
Ready to upgrade your hotel’s lighting infrastructure? [Contact our Lighting Design Team] for a free DIALux simulation or to request a DALI DT8 magnetic track sample kit.
