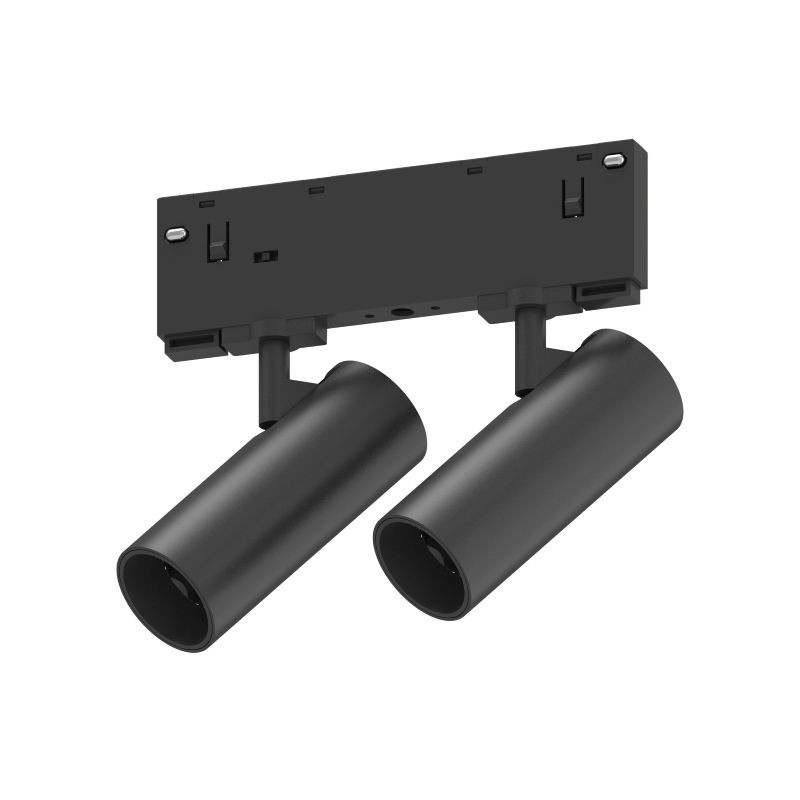

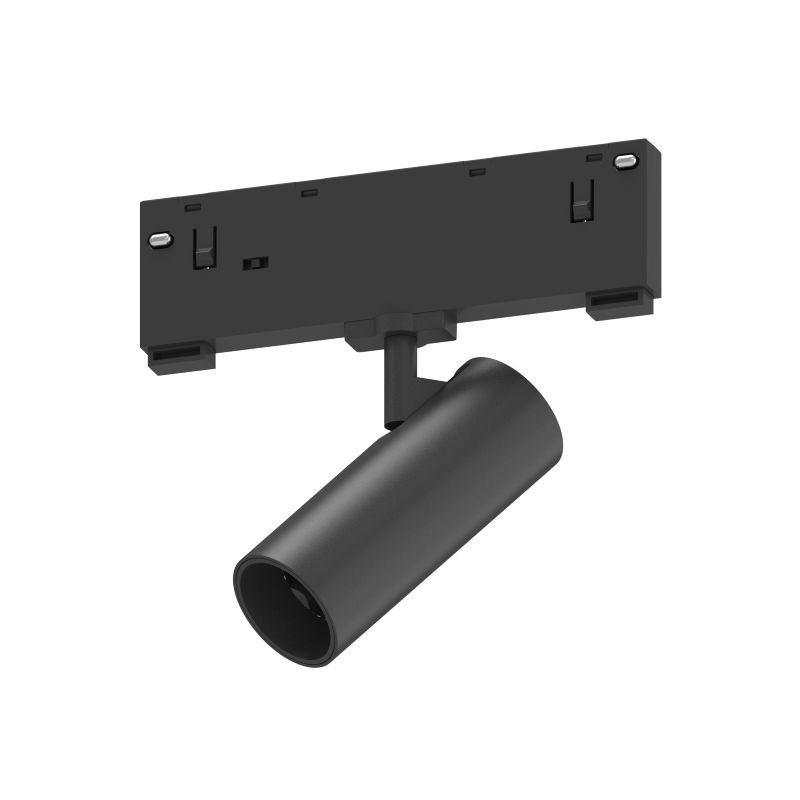

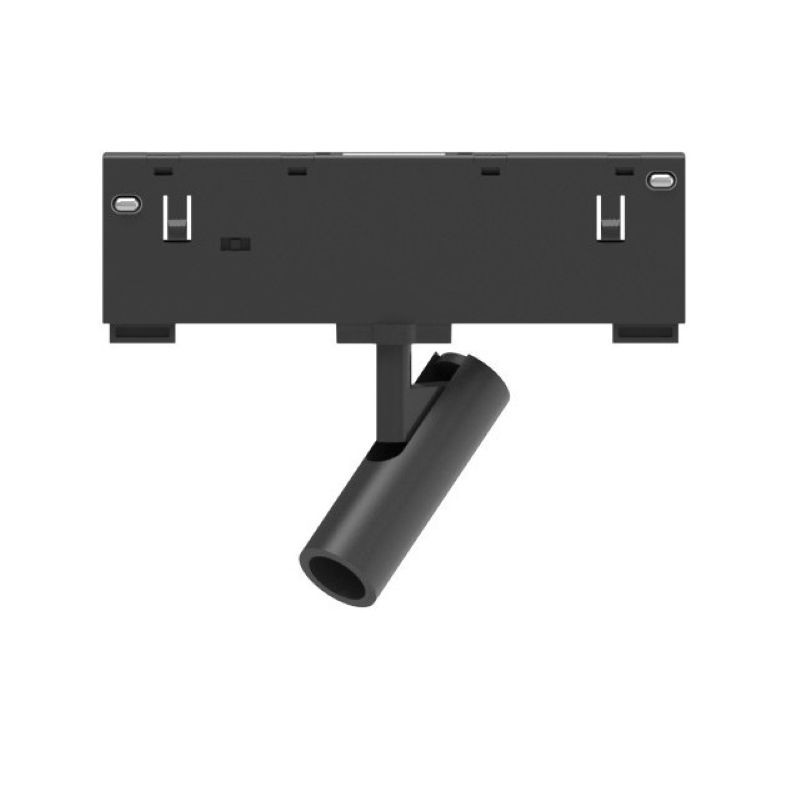

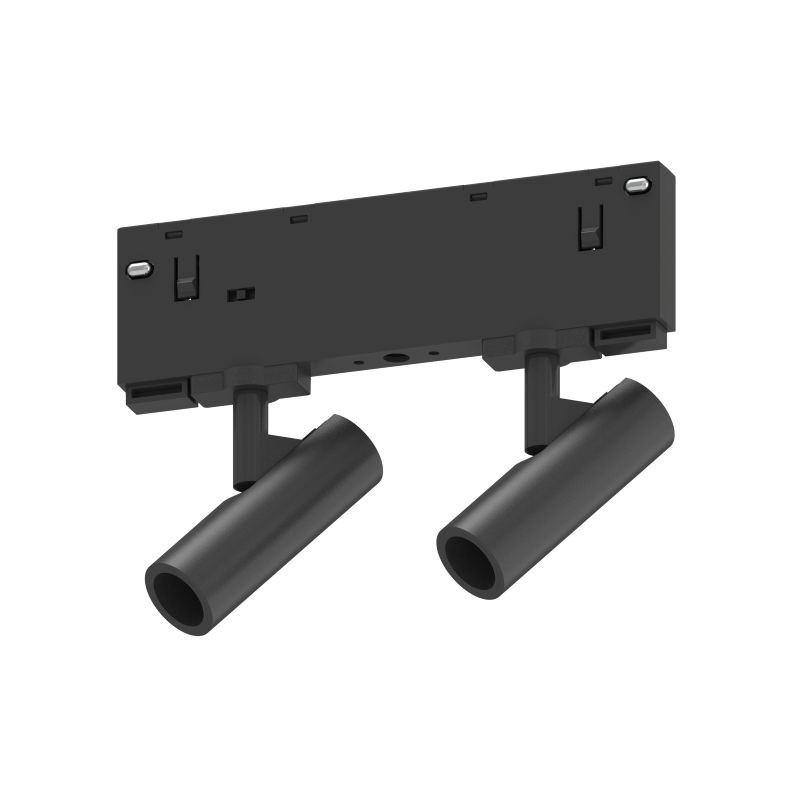

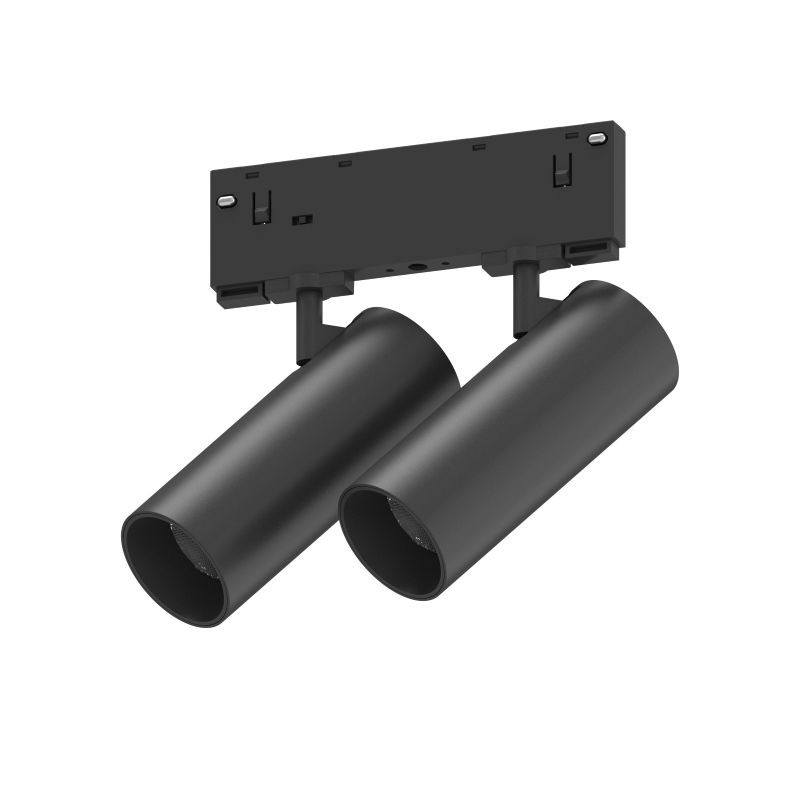

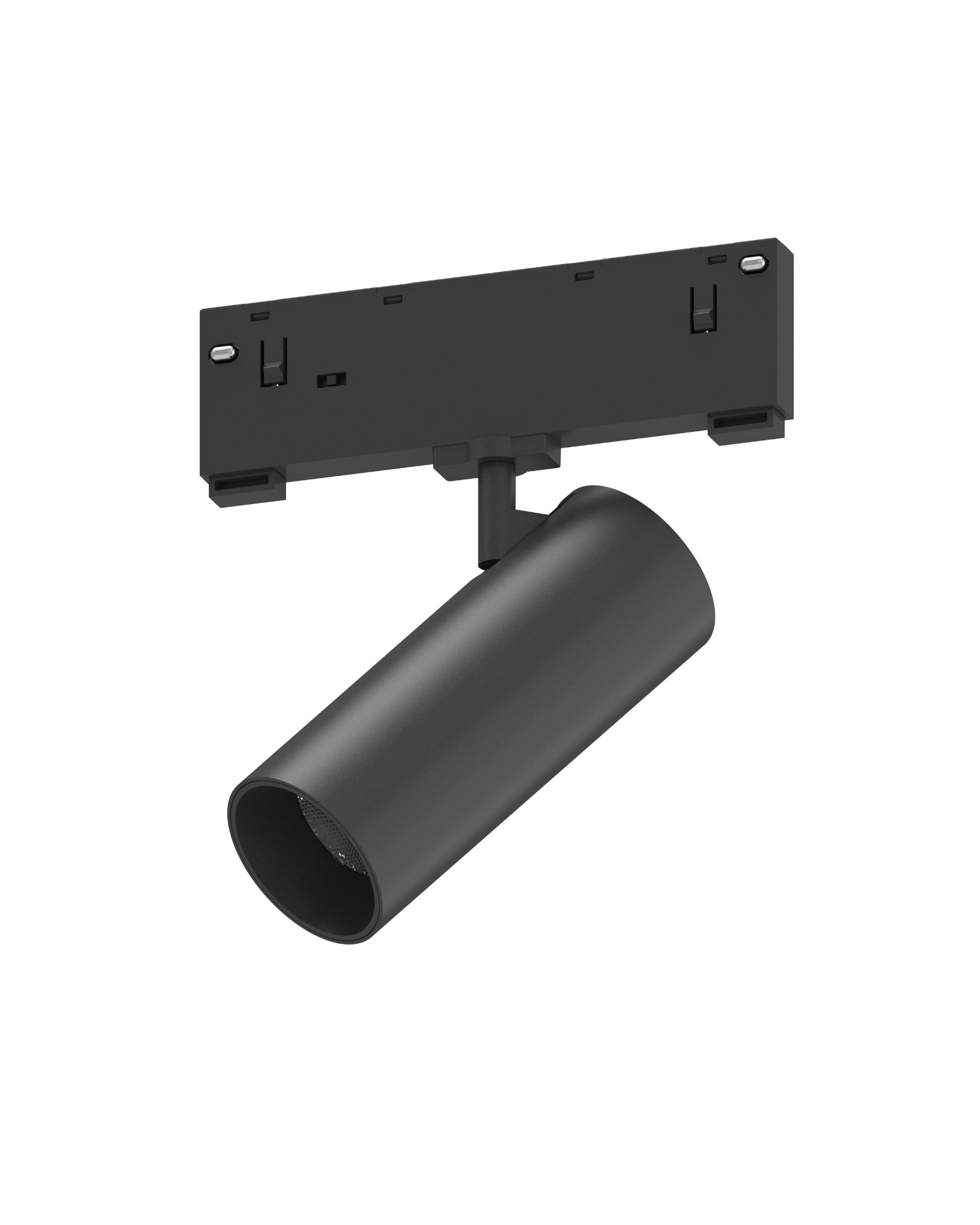

OLEL1-TL7 10MM magnetic track light

10 MM MAGNETIC TRACK LIGHT SYSTEM--LAMPS OLEL-L20 / L33 / L43

• Power : 2W(2*2W) / 6W(2*6W) / 12W(2*12W)

• CCT     :  4000↹●5000K

• CRI >90

• Beam Angle : 15° ,24°,36°

• Material : Aluminum

• Color : Black/White


• Life : 30000H

• Voltage : DC48V

• SIZE:  ø 20*60mm  /   ø 33*85mm /  ø 43*110mm

• Warranty : 3Years

• Certification:CE EMC LVD RoHS LM79 LM80 certificates approved

The advantage of OLEL1  10MM narrow magnetic track light

In recent years, it is not difficult to find from the trend of the Frankfurt Lighting Exhibition that the "miniaturization" of lamps has gradually become the consensus of the industry. International well-known brands such as AAG Stucchi and Flos have launched extremely narrow track series, breaking the stereotype of traditional lighting with a slender design language, especially the current popular small open-hole spotlight design, which forms a perfect adaptation with extremely narrow track.

The M10 ultra-narrow track system is a new addition to this trend – it not only combines technical performance with extreme aesthetic appeal, but also redefines the boundaries of track lighting in indoor spaces.

 1. It has the advantages of both extremely narrow and bright. It is more than 50% narrower than the conventional 20 and 35 tracks on the market, making the whole space line and beauty stronger. Under the premise of better visual effect, the brightness of the lamps is ensured. The color rendering index of M10 series lamps is greater than 90, high lumens, and narrower than 5mm3mm, etc., which can meet the illuminance requirements of the space.

2. More cost-effective 10mm series tracks and lamps are smaller and lighter, and transportation costs and storage costs are reduced.

3. The track has a variety of styles of open-mounted, pre-embedded, and plastered The embedded track adds a slotless design, which only requires a single-layer plywood, bidding farewell to the heavy feeling of the traditional wide and thick track, and does not occupy the floor height, especially duplexes, apartments and other low-floor spaces are more suitable. It is used for façade installation modeling to save space, with fewer installation restrictions and better installation. The installation process can effectively save material and labor costs, significantly improving construction efficiency.

4. Rich lamp modules, more novel and exquisite lamp styles. Give customers more different visual effects, scientifically upgrade the lamp structure, and the new lens optics are not only good in appearance but also more anti-glare. The 20 magnetic suction homogenization that has been circulating in the market for many years is serious, the price is transparent, and the competition is fierce. The M10 series is a unique private mold product, the same cannot be found on the market, for the current 20 magnetic aesthetic fatigue can make customers' eyes shine, and differentiated products can have better pricing power.

5. Powerful N35 permanent magnets provide dual physical locking protection; the push-to-slide lock is smoother and more space-saving, with operation clearly indicated: red for locked, green for unlocked.

6. The full OLEL1-10MM series of luminaires can pass CE certification and can also be directly connected to 0-10V/DALI/phase-cut dimmable power supplies. Centralized intelligent dimming and color adjustment, with a light smart version, allows the entire track to adjust brightness and color temperature according to different scenes. The control chip is located in the front-end power supply, providing various smart options: TUYA (WiFi, Bluetooth, ZigBee)/2.4G/Mijia. The luminaires are compatible with all versions; different smart version requirements can be easily met by replacing the front-end power supply, making it more convenient, faster, and cost-effective. 3000K & 4000K bi-color luminaires offer two common color temperatures in one unit, greatly reducing SKU inventory, with light color and efficiency nearly identical to single-color units, making it more suitable for clients with high standards.

7. 48V safe voltage, safe and reassuring to use. Compared with 24V products on the market, it can achieve 20-30 meters without voltage drop, making wiring easy for large flat floors and commercial spaces; compared with high-voltage products, 48V low voltage is safe with no electric shock risk, combining practicality and safety.

From commercial spaces to residential areas, from functional lighting to aesthetic expression,  OLEL1-10MM ultra-narrow track system is technology-based and design-driven, giving track lighting more possibilities.
